Stage 1 (205 BHP
| 460 Nm
)

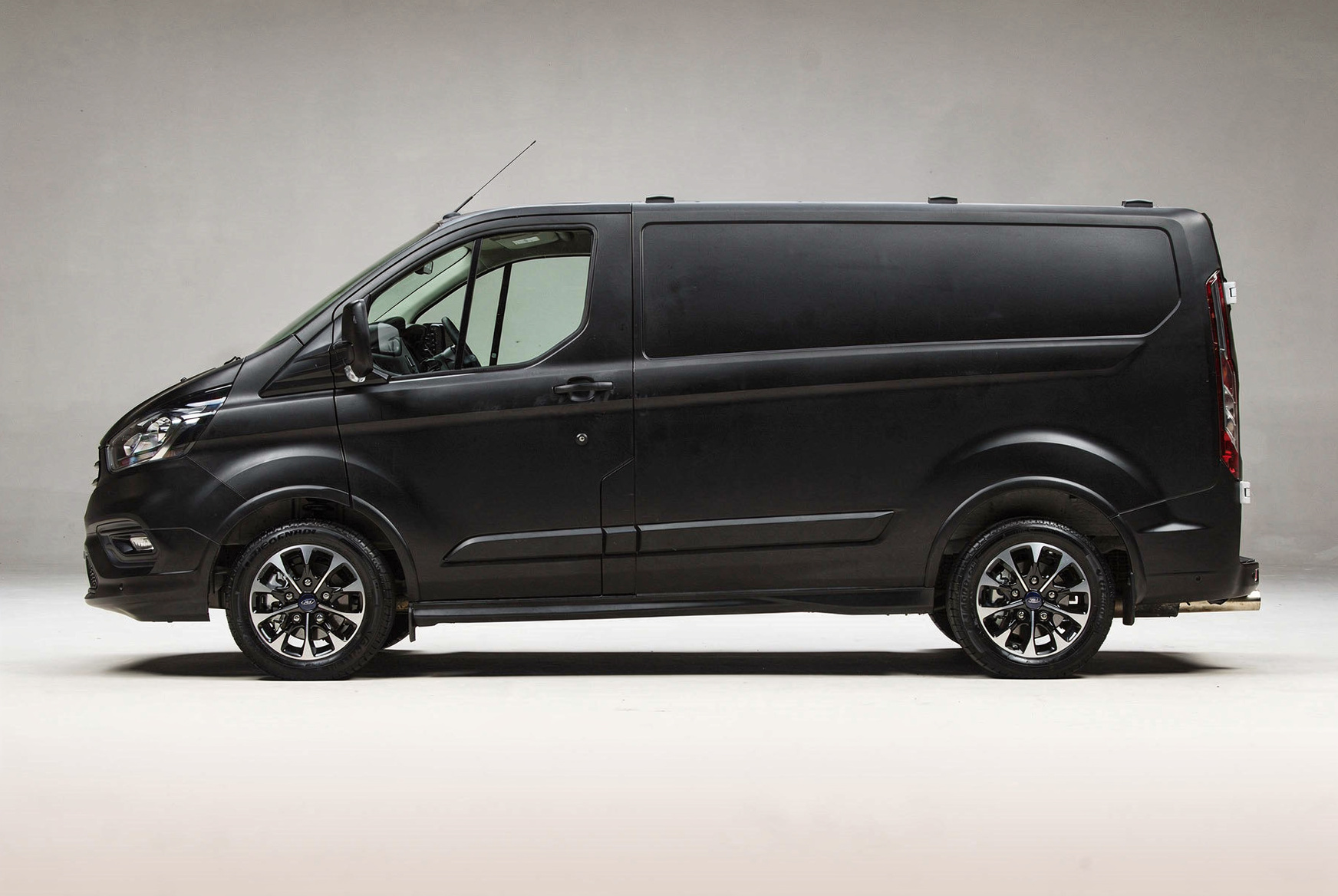

Our Stage 1 remap software for the 2.0 TDCI 130BHP EU6 AdBlue model with the Siemens SID211 control unit delivers excellent power whilst remaining well within the safe limits of the engine. The 130 BHP engine gets the same great gains as the higher powered 170 version, the reason for this is because all of the hardware (turbo, injectors, ECU) are identical to the higher powered 170 BHP model. The factory software is purposely down tuned.
Our remap is designed in such a way that all of the complex torque control structures within the software are satisfied, giving strong and reliable power while maintaining maximum reliability. We don’t simply ‘turn up’ the power; instead, we adjust the calibrations in the same way that Ford would do it themselves. This takes a little longer to do but it’s well worth the extra work and you will feel it when you are driving the vehicle.
The Stage 1 remap will deliver 205 BHP and a torque increase to 460 Nm. We can also make a less powerful remap if you prefer to keep the van a bit calmer, for example 170 BHP factory settings.
Price:
- Program yourself with the MyGenius OBD tool, includes a Stage 1 Remap for just £300!
- Already have a programming tool? Use our Online remap service for just £150
- Drive in or mobile remap from £350
Programming via OBD – Siemens SID211
- Install the MyGenius software to your PC and initialise the tool.
- Connect battery charger or battery stabiliser to the vehicle battery. Remove or disconnect any ancillaries that draw power before you start programming.
- Connect MyGenius to the OBD port of your Vehicle.
- ID the ECU and follow the instructions on the MyGenius device.
- Connect the tool back to your computer, email the software read out to remap@hdi-tuning.co.uk along with a description of the remap you require.
- We will modify the software and send it back to you. This normally takes less than 2 to 3 hours during workdays.
- Using the same tool, connect to the ECU and follow the instructions.
- Let your engine warm up and then take the van for a spin. Enjoy the extra power!
