MyGenius OBD programming tool
compatibility MyGenius

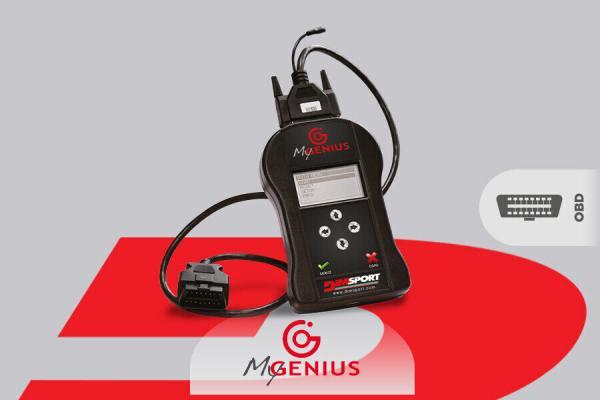

MyGenius OBD Tool

Price range: £200.00 through £500.00

MyGenius is a personal version of Dimsport’s New Genius professional OBD programming tool, tied to a single specific vehicle. It’s a device which gives vehicle owners full OBD programming capabilities, just like if you were to invest in professional tuning equipment.

When you order, choose your car type and the remap you’d like from the drop down menus. If it’s not listed then just get in touch.

The remap is NOT pre loaded on the device, you must connect to the vehicle and read out the software using MyGenius. You then send the file to us via email.
When you order the remap with the tool, you are simply pre-paying for the software.
We always make the software custom to the ECU software that you read out from your vehicle.

Quantity:
SKU: 0-MyGenius Category: Tags: , ,

Description

How does it work?

  1. When you receive your MyGenius programming tool, the first step is to install the Dimsport software and then update the device, this ensures it has the most up to date protocols. see tinyurl.com/mygsetup
  2. Connect a battery charger or battery stabiliser to your vehicle, we want to ensure voltage does not drop during programming, on some vehicles programming can take a long time (usually it’s very fast, but we like to play things as safe as possible). Make sure headlights are off, Sub woofers disconnected at the main fuse, anything that draws lots of power should be disconnected when flashing.
  3. Next you can connect to the OBD port of your vehicle, follow the instructions on the MyGenius tool.
  4. Next you can identify, and take a read of your original ECU software.
  5. Connect your MyGenius device to your computer and upload the original read (or ID) to HDI Tuning.
  6. Place an order through our webshop for the online remap service. If you want multiple versions please discuss and we can do a multi buy deal. For example, DPF, EGR, AdBlue delete (off road use only).
  7. Upload the remapped file back to MyGenius.
  8. Connect battery support to vehicle.
  9. Connect MyGenius to OBD port and then follow instructions to program remap.

Here’s a video of how it works, it’s extremely easy to setup and use: Dimsport MyGenius OBD Flashing device

When you’ve received your remap back, you’re ready to program it back on to the ECU: MyGenius OBD programming

Important things to know about your purchase of MyGenius

MyGenius will automatically lock to the VIN of the first vehicle it is connected to.
-You can program this vehicle as many times as you like.
-To re-use the tool on another vehicle, you must re-program the original file to the vehicle. Through our client manager software we can then perform a ‘soft reset’ and you can use it on your next vehicle.
-If you take your car to the main dealer and they do an ECU update to different software, you wont be able to use the tool on the car again, in this case it’s better to reset the car to standard before taking it to a dealer if there is a risk of them doing an update (for example if it’s still under warranty).
-If the tool needs to be unlocked to a new vehicle, and you did not reflash to original first it must be sent to DimSport for a reset which costs 100 EURO plus shipping costs (cannot be done by HDI Tuning).
-This tool is supplied by HDI Tuning and cannot be used with other tuning companies.
Once the tool has been connected to a vehicle and used it is not refundable.
-If the tool is not compatible with your vehicle and cannot be used it can of course be returned for a full refund.
-MyGenius is designed to be extremely safe and as such there is minimal risk of wiping the ECU, in the event of a programming failure that cannot be restored by the MyGenius tool the ECU will need to be sent to HDI Tuning for bench programming and recovery.
-For most Volvo applications you will need the double CAN volvo cable F32N065 this costs 40 EUR extra.

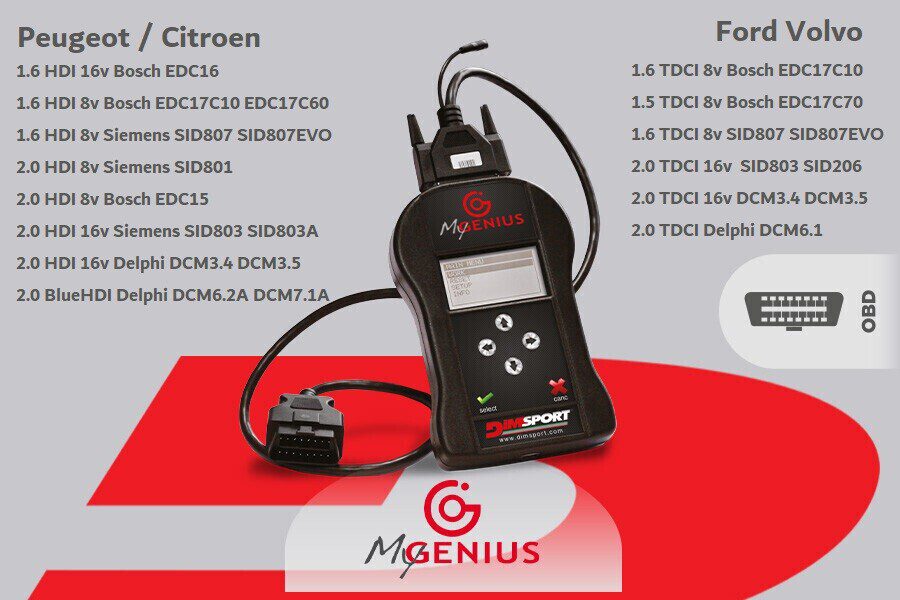

Compatibility list (vehicles highlighted in RED will use a virtual read from Dimsport’s servers):

https://www.hdi-tuning.co.uk/wp-content/uploads/2023/06/MYGenius-compatibilitylist2023-1.pdf

ECUs we’ve already remapped using MyGenius with
-Ford SID807EVO TC1797 Tested
-Peugeot SID807EVO TC1797 processor Tested
-Citroen SID807 TC1796 processor Tested
-PSA Delphi DCM6.2A BlueHDI Tested
-PSA Delphi DCM6.2C BlueHDI Tested
-PSA Delphi DCM7.1A BlueHDI Tested
-PSA Delphi DCM3.5 Tested
-PSA Delphi DCM3.4 Tested
-PSA EDC17C10 Tested
-PSA EDC16C34 Tested
-Mini Cooper EDC16C35 1.6 16v Tested
-PSA EDC17C60 BlueHDI Tested
-PSA SID806 1.4 HDI Tested
-PSA SID805 1.4 HDI Tested
-PSA SID803 2.0 HDI Tested
-PSA EDC15C2 2.0 HDI 8v Tested
-Ford EDC17C10 1.6 8V Tested
-Ford EDC17C70 1.5 TDCI Tested
-Ford Fiesta Focus EDC16C34 1.6 16v 2005 to 2008 Tested
-NOT POSSIBLE – Ford EDC16C34 2008 to 2010 only, models before and up to 2008 work ok (Ford ECUs with 0281014xxx are not possible).
-Volvo EDC16C34 with double CAN cable, 1.6 16v up to 2010
-Volvo EDC16C31 D5 Tested
-BMW EDC17C50 2.0D Tested several versions of EDC17 BMW
-BMW EDC17CP45 3.0 535D 640D Tested
-Mercedes EDC17CP46 350CDI Tested
-Mercedes EDC16 Tested
-Mercedes CRD2.35 Tested
-Mercedes CRD3x
-MAN TGE / VW Crafter DCM6.2
-John Deere Phoenix L33, most Tractors are covered
-NOT POSSIBLE PSA 1.5 BlueHDI MD1CS003 – send to us for bench programming only

Additional information

Weight 1 kg
Dimensions 25 × 25 × 12 cm
OBD Cable Type

Citroen, Audi, BMW, DS, Fiat, Ford, Honda, Jaguar, Land Rover, Mercedes, Mini, Peugeot, Porsche, Range Rover, Renault, Seat, Skoda, Toyota, VAG, Volvo (Normal OBD cable)
Remap options

No Remap – pay later, Stage 1 Remap, Stage 1 Remap + Delete(s), Stage 2 Remap, Stage 3 Remap, Stage 1 Remap + Deletes up to 3 files, Stage 1 and 2 Remaps + Deletes, Stage 1 2 3 Remaps up to 10 files, Standard Power – Deletes only
